BanFire-ZHFR

Introduction

KEI Banfire is processed using a Halogen Free Flame Retardant compound (HFFR). The insulation is of superior quality, 100% PVC free and eco -friendly. In case of a fire situation, Banfire does not emit toxic or poisonous fumes, which enables safe evacuation. These wires are best suited for wiring in hospitals, hotels, business establishments and high rise buildings where fire can be determined. So, give yourself the promise of security and supreme quality. Get KEI house wires and safeguard your home for life.



Cable Structure

Conductor The conductors, drawn from bright electrolytic grade copper and annealed and bunched together.
Insulation The bunched conductors are insulated with specially formulated grade of Halogen Free Flame Retardant (HFFR) compound is used. The insulation does not melt or drop in case of fire. The smoke emitted is transparent, non-toxic and minimal. The victims trapped in the fire do not suffocate and evacuation is convenient.
Marking The cables are printed with generic marking ‘BANFIRE’.
Colors Red, Yellow, Blue, Black, Green and Grey.

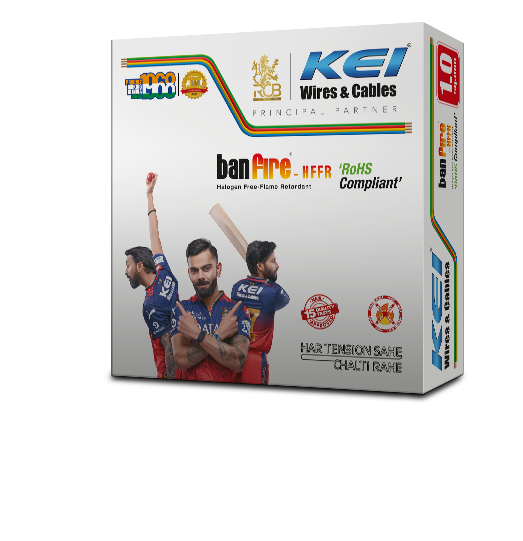

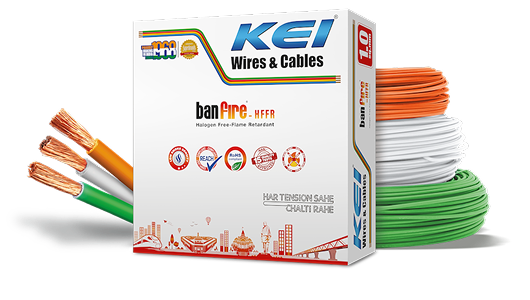

Packing 90 Meters (apprx.100 yards) pack in protective cartons.
Test Specification Specified Values
Critical Oxygen Index ASTM-D 2863 Minimum 29%
Temperature Index ASTM-D 2863 Minimum 250 °C
Acid Gas Generation IEC 60754 -1 Maximum 0.5%
Smoke Density Rating ASTM-D 2843 Maximum 20%


Size Dimensions and Ratings

Nominal Cross Sectional Area of Conductor Number/Nominal Dia of wires*[Nom.] Thickness of insulation [Nom.] Overall Diameter Max. Current Rating D.C Resistance [Max.] at 20°C
Clipped Direct/Cable Tray Conduit/Trunking
Sq.mm Number/mm mm mm amps amps Ohm/km
0.75 24/0.2 0.6 2.8 7 8 26.0
1.00 32/0.2 0.6 3.0 12 13 19.5
1.50 30/0.25 0.6 3.4 14 17 13.3
2.50 50/0.25 0.7 4.1 19 23 7.98
4.00 56/0.3 0.8 4.8 25 31 4.95
6.00 84/0.3 0.8 5.3 33 39 3.30

* The number & diameter of conductor strands are for reference only and governed by conductor resistance.

* The above data is indicative only and may be revised without prior information. KEI will not be responsible for any damages arising out of incorrect application of its product.
